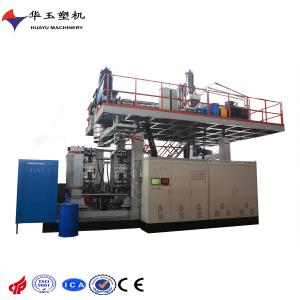

HUAYU 1000L 3LAYERS Blow Moulding Machine Compact Design for Large-Scale Plastic Drum Production

Product Categories
Weifang Huayu Plastic Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

HUAYU 1000L 3LAYERS Blow Moulding Machine Compact Design for Large-Scale Plastic Drum Production

Brand Name : HUAYU

Model Number : HYBM1003

Certification : ISO9001, CE

Place of Origin : CHINA

MOQ : 1

Price : 200000 USD

Payment Terms : L/C,T/T

Supply Ability : 1 SET 120DAYS

Delivery Time : 4 MONTHS

Packaging Details : be disassembled into many parts for container transportation

Type : Extrusion Blow Molding Equipment

Warranty : 1 year

Machinery Test Report : Provided

Production Speed : 100-200 pieces/hour

Material : Plastic

Average Power : 250kw

Total Weight : 38T

Capacity Range : 200-1000l

Platen Size : 1500*1600*60mm(W*H*T)

Average Consumption : 110kw

Accumulator Capacity : 35KG

Hollow Part Volume : Customized

Color : Blue/yellow/white/orange

Maximum Air Pressure : 0.8Mpa

Total Power : 520kw

Contact Now

The advanced blow moulding machine offers cutting-edge technology for industrial plastic production. Its energy-saving features and precision engineering ensure cost-effectiveness and consistent product quality. The durable construction makes it suitable for heavy-duty applications.

Auto Feeder

hopper material

stainless steel

feeding type

spring loaded

feeding motor

1.5/1.5/1.5kw

Screw diameter

100/120/100mm

Screw L/D ratio

28:1

Extruder motor

55/90/55kw

Reducer

280/330/280

Screw heating power

4.4kw*5+4 kw*8

Plasticizing capacity

600kg/h
